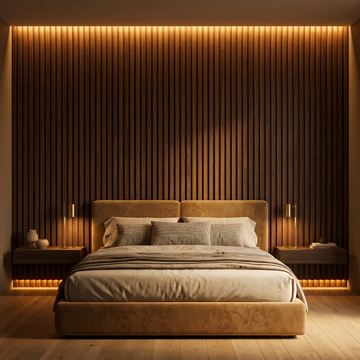

LED-Backlit Acoustic Accent Wall — Bedroom
Project: LED-Backlit Acoustic Accent Wall | Room: Bedroom | Difficulty: Easy–Medium | Time: 3–4 hours | Panels: Dark Brown Linear Acoustic 2400×600mm + ENER-J Smart LED Kit
There's a moment in the evening when the bedroom transforms — the ceiling light goes off, the bedside lamps come on, and the atmosphere changes completely. This project takes that moment further. Behind the dark brown linear acoustic panels, a smart LED strip glows warmly through the slat grooves, sending columns of amber light down the wall. The effect is cinematic, immersive, and genuinely difficult to stop looking at.
It combines two products that are exceptional on their own — the Dark Brown Linear Acoustic Panels for texture, depth and sound absorption, and the ENER-J Smart LED Kit designed specifically for acoustic panels, app-controlled and voice-compatible — and creates something that's much greater than the sum of its parts.
The Smart LED Kit — What It Does
The ENER-J Smart LED Strip Kit is designed specifically for use with acoustic wall panels — the strips mount cleanly along the top and bottom edges of the panel section, tucked into the groove between the panel face and the wall. The 2-piece kit covers a standard headboard section. Key features:
App Controlled
Control brightness, colour and schedules from your phone — no switches needed
Voice Compatible
Works with Alexa and Google Home — "Alexa, dim the bedroom wall"
Dimmable
From full brightness down to the softest warm glow — full control of the mood
Colour Changing
Millions of colours — warm white for evenings, cool white for mornings, coloured for ambiance
Schedule & Scenes
Set sunrise wake-up scenes, bedtime dimming routines and custom mood presets
Designed for Acoustic Panels
Sized and designed specifically to mount behind acoustic wall panel sections cleanly
About the Acoustic Panel
The Dark Brown Wood Grain Linear Acoustic Panel is 2400×600mm × 21mm — a full floor-to-ceiling panel with deep vertical linear grooves and a genuine sound-absorbing PET MDF core. Each pack of 2 covers 2.88 m². The dark brown wood grain finish is warm and rich — it looks expensive in daylight and transforms completely when backlit in the evening. Features:
- Dark brown wood grain finish — deep, warm, premium look
- Deep linear grooves — 21mm depth creates strong shadow lines and channels LED light beautifully
- PET MDF acoustic core — genuinely reduces echo and improves bedroom sound quality
- 2400mm tall — full ceiling height, no horizontal joins
- 600mm wide per panel — manageable size, easy solo installation
- 21mm groove depth — creates the perfect channel for concealed LED mounting
💡 Why the groove depth matters for LED: At 21mm deep, the linear grooves are deep enough to hide the LED strip completely from straight-on view — you see only the glow emanating from within the groove, not the strip itself. This is what creates the "floating light" effect rather than a visible LED strip.
LED Mood Settings — What Each Scene Looks Like
| Scene | Colour / Brightness | When to Use |
|---|---|---|
| Wake Up | Cool white, gradually brightening | Sunrise alarm — gentle, natural wake-up light |
| Daytime | Warm white, full brightness | Working from bed, reading, getting ready |
| Evening | Warm amber, 40–60% brightness | Relaxing, watching TV — the wall at its most cinematic |
| Bedtime | Deep warm orange, 10–20% brightness | Winding down — the slat glow is most dramatic at this level |
| Mood / Colour | Any colour — deep blue, soft pink, forest green | Parties, creative moods, seasonal changes |
What You'll Need
This guide covers a headboard section — 2.4m wide × 2.4m tall (5.76 m²). Two packs of acoustic panels cover this perfectly with a little left over for edge trims.
Shopping List & Cost Breakdown
💡 Larger wall? For a full 4m × 2.5m feature wall (10 m²) use 4 packs of acoustic panels (£480) and the 4pc Smart LED Kit (£200) instead. Total: £712 — still exceptional value for the effect you get.
Step-by-Step Installation
Plan the LED Position First
Before fixing any panels, decide where your LED strips will sit. The most effective placement is along the top edge of the panel section — the light washes down the full height of the grooves. A second strip along the bottom edge creates a floating effect with light coming from both directions. Mark these positions on the wall with a pencil before starting installation so you know exactly where to route the cable.
Route the Cable
Plan your cable route before fixing panels — once they're on the wall, you can't easily change it. The cable from the LED strip should run along the top or side edge of the panel section to a nearby socket. Use cable clips or tuck the cable into the gap between the panel edge and the wall. For a completely concealed cable, fix a slim timber batten at the top of the panel section and run the cable behind it.
Fix Panels — Start from Centre
Mark the centre of your headboard wall and work outwards. Apply adhesive in vertical zigzag lines across the back of the first panel and press firmly against the wall, checking plumb with a spirit level. Each panel is 600mm wide — butt each new panel tightly against the previous one so the linear grooves run continuously across the full width without any gap at the joins.
Check Groove Alignment Between Panels
This is the most important step for a seamless LED effect. The linear grooves on adjacent panels must align perfectly — if they're offset even by a few millimetres, the LED light columns will appear misaligned when the lights are on. Before the adhesive sets, hold a straight edge across two adjacent panels and check the grooves are level. Adjust if needed while you still can.
Mount the LED Strip
Once all panels are fixed and the adhesive has cured (24 hours), mount the LED strips. The ENER-J kit is designed to sit at the top edge of the panel section, positioned so the light shines downward into the grooves. Peel the backing and press firmly into position — the strip should sit just behind the panel face so it's hidden from straight-on view. Connect to the controller and test before finishing the cable routing.
Connect to Smart Home & Set Your Scenes
Download the ENER-J app and connect the LED controller to your home WiFi. Set up your favourite scenes — a warm amber bedtime scene, a bright cool-white morning scene, and a dimmed amber evening scene are the three most useful for a bedroom. If you use Alexa or Google Home, add the device to your smart home and name it something intuitive like "bedroom wall" for easy voice control.
💡 Pro tip — Dim to 15% for maximum drama: The most jaw-dropping setting for this wall is not full brightness — it's around 10–15% warm amber. At this level the LED glow is subtle enough that your eye is drawn into the depth of each groove rather than to the light source itself. The whole wall appears to breathe with a warm inner glow. Try it with all other lights in the room turned off and you'll immediately understand why this project is worth every penny.
The Acoustic Benefit — Worth Mentioning
Beyond the visual drama, these panels genuinely improve bedroom acoustics. The PET MDF core absorbs sound reflections — reducing the echo and flutter that makes many bedrooms feel harsh and noisy. The result is a room that sounds noticeably quieter and more intimate, which is exactly what you want in a bedroom. It's the one wall panel that makes your room look better and sound better at the same time.
Questions about installation or compatibility? Our team is happy to help.
